Fluxly

Fluxly - Lightweight framework for portable, self-contained DAG-based workflows.

---

Introduction

Fluxly is a lightweight framework for building and running directed acyclic graph (DAG)-based workflows.

The entire workflow acts as a self-contained execution endpoint:

• Run them locally or via CLI commands, API calls, or environment triggers.
• Package them in containers for portability.
• Integrate seamlessly with higher-level orchestrators (Argo, Airflow, Prefect, CI/CD) without extra glue code.

With Fluxly, pipelines are highly structured, enabling safer execution, easier debugging, and better modularity.
Workflows can run standalone or as part of a larger system, making Fluxly both lightweight and flexible.

Why Fluxly (the problem it solves)

• Unstructured container pipelines become spaghetti: per‑container scripts, mismatched inputs/outputs, and duplicated retries/timeouts/logging without a shared wrapper.
• Heavy solutions like Airflow require schedulers, DBs, and webservers—great for platforms, heavy for simple, portable pipelines.
• Orchestrator‑centric SDKs (e.g., Prefect) add remote control planes and runtime coupling that don’t fit autonomous, fire‑and‑forget containers.
• Fluxly keeps logic structured and isolated inside a single repo and image: typed I/O models, explicit DAG, consistent entrypoints (CLI/API/env), and clear node boundaries. Any orchestrator can trigger it, but your code stays clean and portable.
• Ideal when each Docker should remain simple and self‑contained, with minimal coordination overhead.
• In monorepos—or by wrapping Fluxly—you can centralize shared services, typed inputs, validations, outputs, and metadata to fit org standards. This thin wrapper standardizes containers and removes boilerplate across pipelines.

---

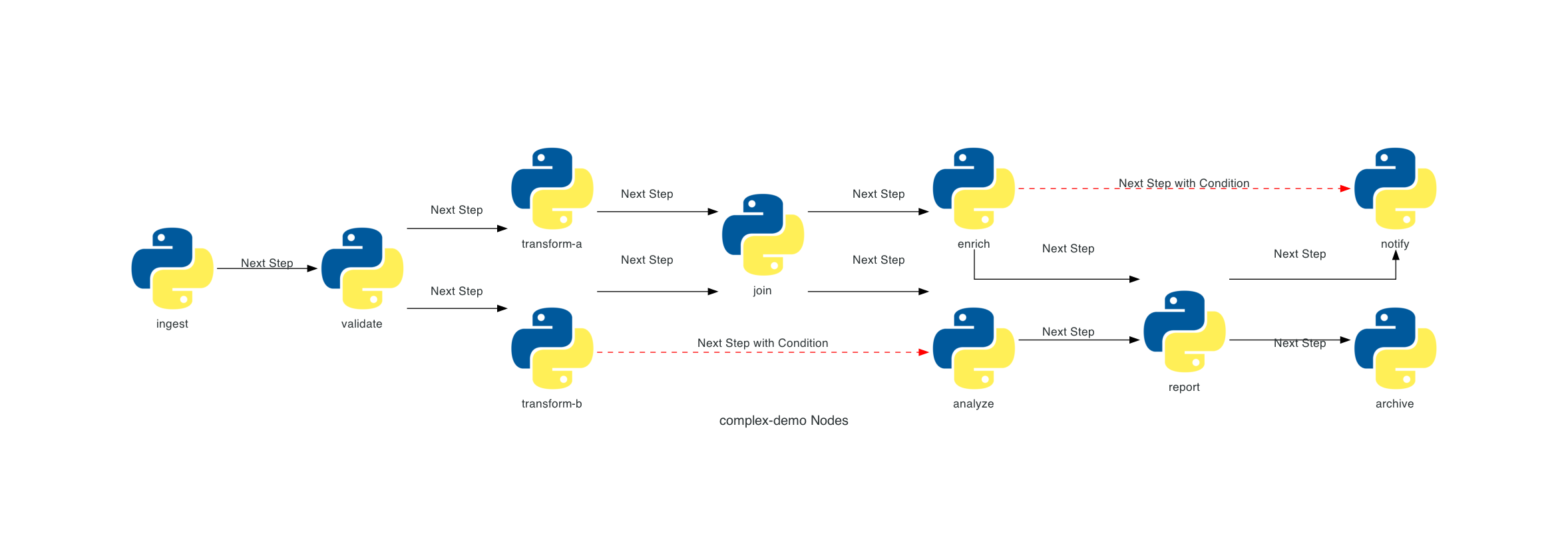

Complex workflow

Clear representation of workflow DAG with branching and parallel execution.

---

Key Features

• Flexible entrypoints – workflows can be triggered via CLI, API calls, or environment variables.
• DAG-based workflows – define arbitrary connections between ndoes and their dependencies.
• Highly structured workflows – strict validation ensures safer pipelines, easier debugging, and predictable behavior.
• Self-orchestrated nodes – each node manages its own execution, retries, and dependencies.
• Lightweight building blocks – workflows are self-contained units that can run independently in any environment.
• Extensible by design – wrap workflows with custom classes to add logging, metrics, or integrations.
• Local-first development – debug and run workflows standalone, then scale seamlessly to CI/CD or external orchestrators.

---

Installation

Install Fluxly

pip install fluxly

---

Quick Start

1) Define Workflow Input

Define a typed WorkflowInput to specify all inputs your workflow expects.
These inputs are agnostic to how the workflow is triggered — they can come from CLI flags, API requests, or environment variables — giving you maximum flexibility.

WorkflowInput Example

from fluxly.workflow import WorkflowInput

class MyInput(WorkflowInput):
    message: str = "world"

2) Make nodes

Implement Node logic in _logic() and type-narrow workflow_input for convenience.

Node Example

from fluxly.node import Node

class Echo(Node):
    @property
    def workflow_input(self) -> MyInput:
        return self._workflow_input

    def _logic(self) -> None:
        self._logger.info(f"Echo: {self.workflow_input.message}")

3) Build a workflow

Create a Workflow, add nodes to it, and wire edges/conditions to express execution order and data dependencies.
Workflows orchestrate retries, timeouts, and overall execution.

Workflow Example

from fluxly.workflow import Workflow

def build_workflow() -> Workflow:
    wf = Workflow(name="demo", description="Demo flow", version="0.1")

    # Nodes: demonstrate node-level timeout and retries
    alpha = Echo(name="alpha", description="prints a message", timeout_seconds=5, max_retries=1, retry_delay_seconds=1)
    beta = Echo(name="beta", description="prints after alpha")
    gamma = Echo(name="gamma", description="conditional step")

    # Register nodes to the workflow
    wf.add_node(alpha)
    wf.add_node(beta)
    wf.add_node(gamma)

    # Edges (ordering and conditions)
    wf.add_edge(alpha, beta)  # run beta after alpha
    wf.add_conditional_edge(beta, gamma, condition=lambda: True)  # example condition
    # Alternatively, run a node only if its parent completed successfully
    wf.add_edge_if_source_completed(alpha, gamma)

    return wf

4) Expose Your Workflow

Use Fluxly to expose your workflow as a single, consistent entrypoint.
Inputs from your WorkflowInput are automatically mapped to CLI flags, API payloads, or environment variables, keeping your interface consistent and type-safe across all triggers.

Expose Workflow

from fluxly import Fluxly

if __name__ == "__main__":
    app = Fluxly()
    wf = build_workflow()
    # register workflow with its input type
    app.add_endpoint("my-workflow", wf, MyInput)
    app.run()  # can be triggered via CLI, API, or env vars

Run it via CLI:

Run CLI

python main.py my-workflow --message hello

# discover generated flags and help text
python main.py my-workflow --help

Trigger via HTTP POST request:

Run via API

import requests

url = "http://localhost:8000/my-workflow/run"
payload = {"message": "hello"}

response = requests.post(url, json=payload)
print(response.status_code, response.json())

Trigger via environment variables (with FLUXLY_ prefix):

Run via Environment Variables

export FLUXLY_MESSAGE="hello"
python main.py my-workflow

---

Generated Entrypoints (CLI and API)

Fluxly auto-generates a CLI menu and API routes per registered workflow.

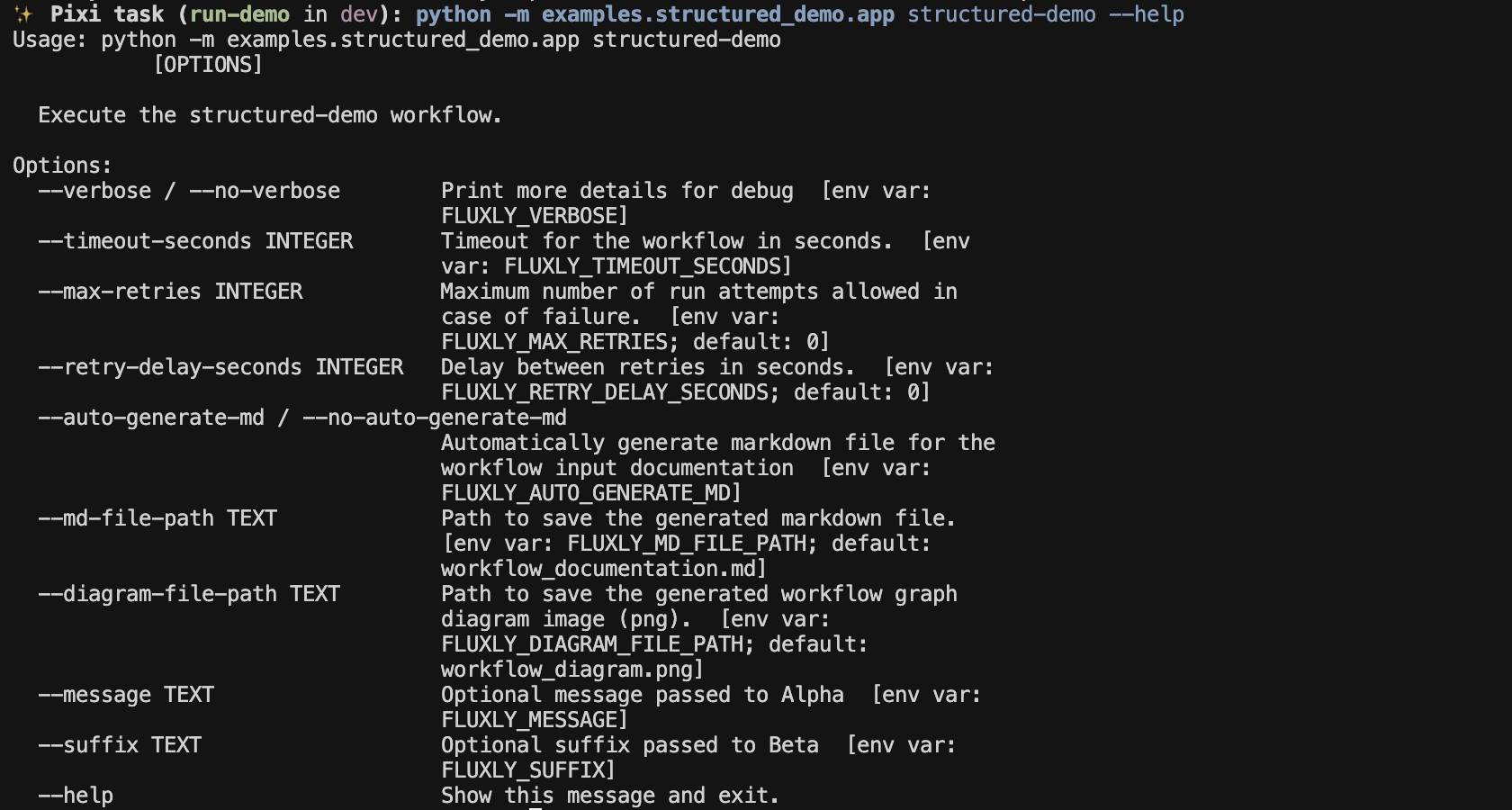

CLI Menu

CLI commands generated for your workflows.

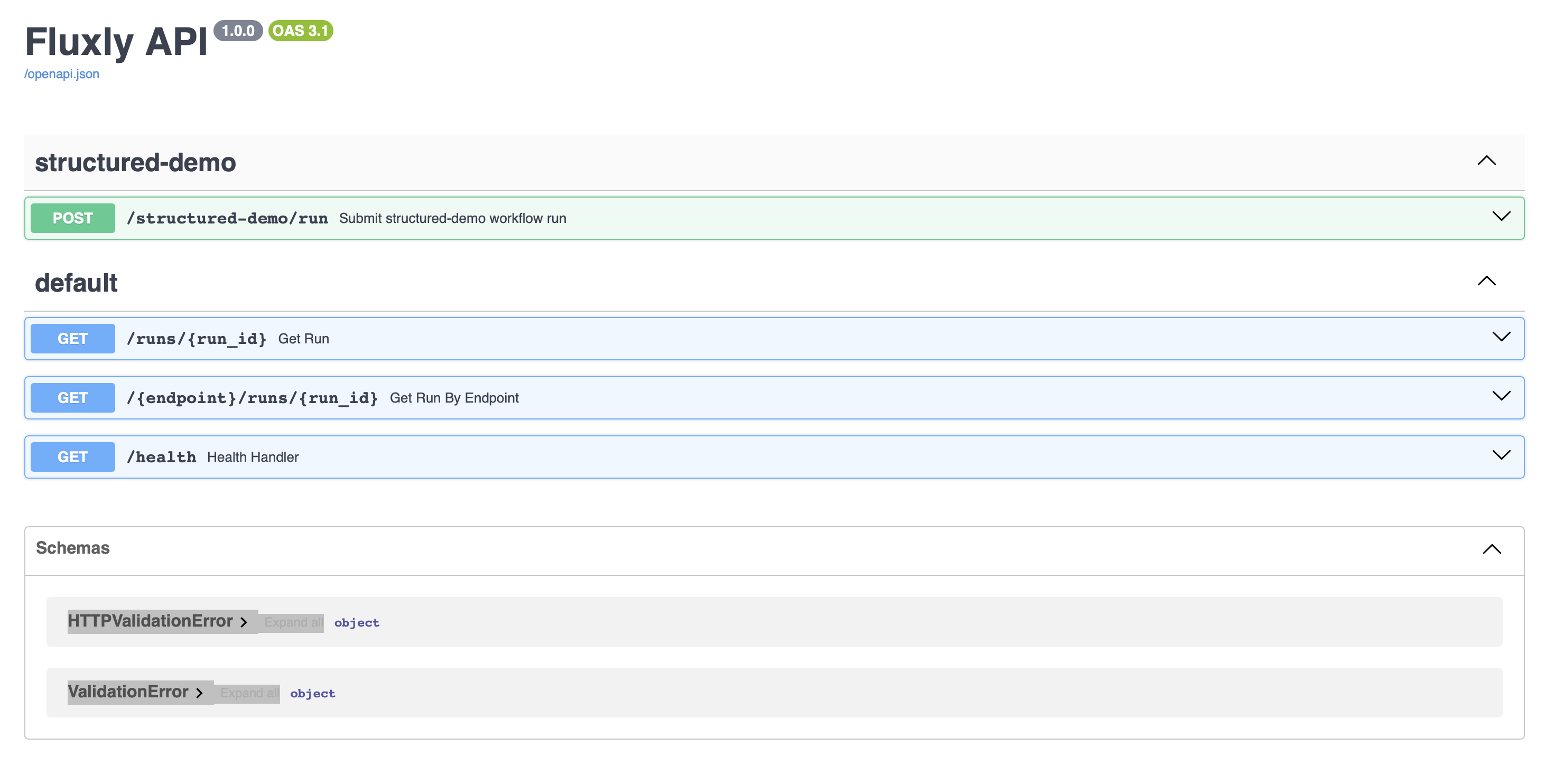

Swagger UI

API endpoints for submitting runs and fetching statuses.

---

Where to go next

• Getting started: project layout, environment, and running the included demo — Getting started
• Core concepts: workflows, nodes, execution groups, orchestration controls, and node-to-node communication — Core concepts
